The Australian designed Cooee Pedal - PEDAL BOX INSTALLATION KIT
Are your BRAKES a problem?
You NEED a Cooee Components Pedal
The Coo ee Pendulum Pedal Box was developed from the need to have choice to the pedal box products/systems currently on the market.
The Coo ee Pedal Box (CPB) replaces the OEM pedal box
The Coo ee Pedal Box (CPB) has been developed and tested by Coo ee Components it is a complete pedal box installation kit which can be installed directly into hot rods and custom classics.
CPB is Automotive Engineer tested and Certified it is fully compliant with Australian Design Rule 35 “Brake Systems for Passenger Cars”
Same unit fits either Left or Right hand drive vehicles
Automatic or Manual system available
Manual kit Under Dash or On Firewall clutch master cylinder fitment system available.
COO EE DOES NOT SUPPLY BRAKE BOOSTERS OR MASTER CYLINDERS

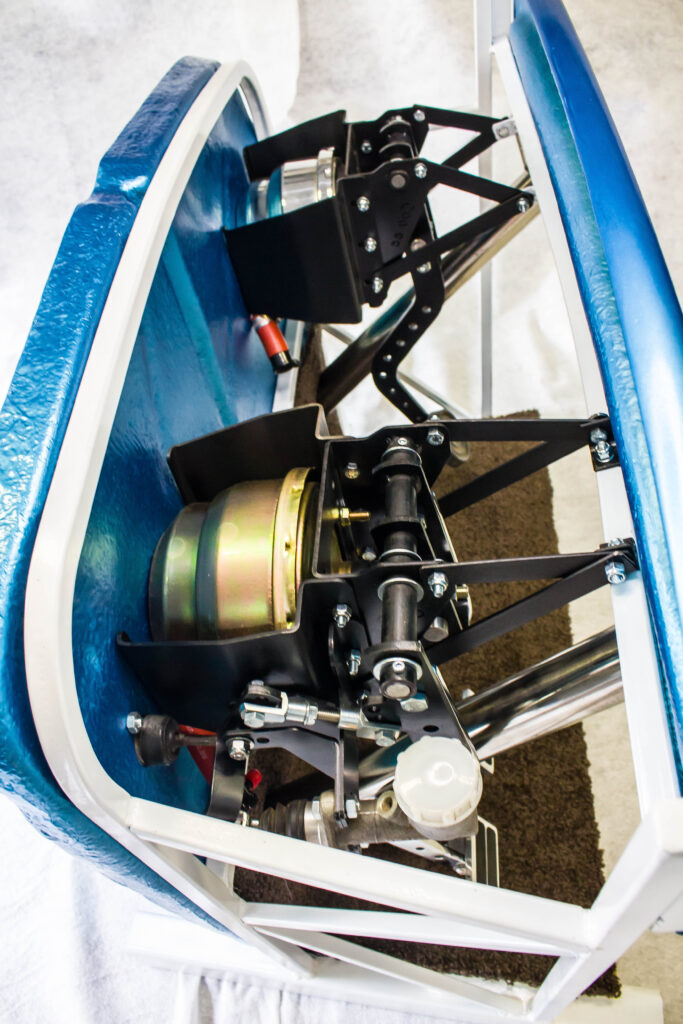

Display Unit
Three optional pedal lengths Long, Medium or Short for either Full Size Sedans, Trucks, Channelled trucks and rods or even T buckets
CPBs have the advantage of being easy to install, requiring only a smooth flat section of the firewall to mount the CPB and sandwich the master cylinder and brake booster. The installer can determine the appropriate location of the brake pedal pad within the car and the master cylinder on the firewall.
All our products are covered by a full warranty.

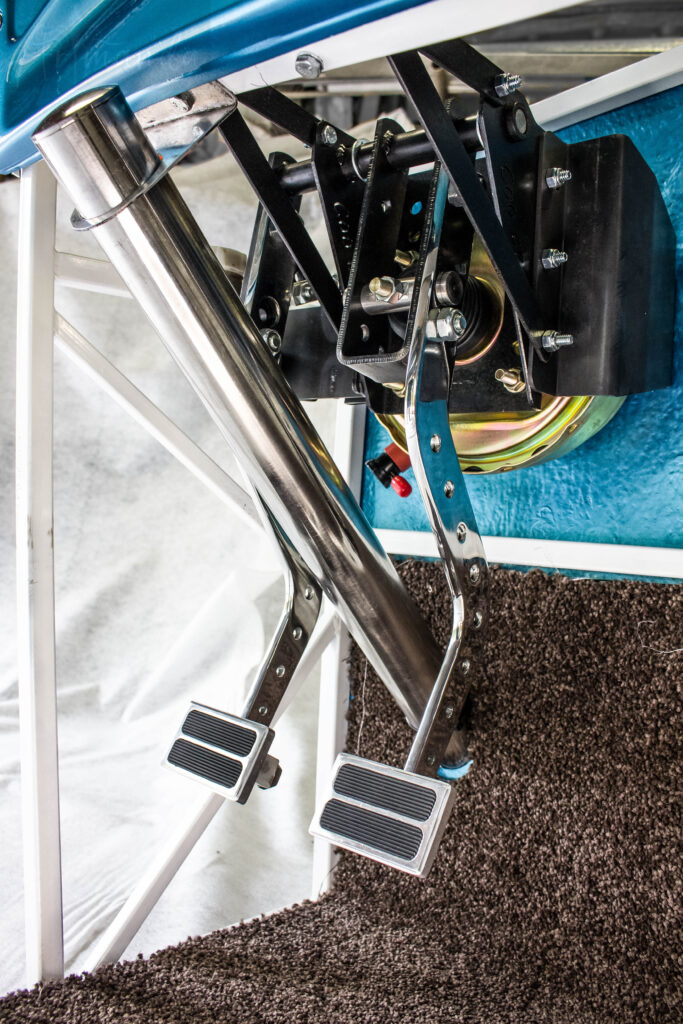

CPB is designed to simplify the service and maintenance of the braking system. It has the master cylinder mounted on the firewall and the booster out of sight utilising the space between the back of the dash and the firewall.
The CPB has an inbuilt design feature that allows the Pedal Lever to be bolted to the Pedal Hinge at any convenient location. It can be either side of the pedal hinge. This assists in integrating the final position with the steering column position and other obstacles under the dash or on the firewall.
CPB uses an industry standard aftermarket style 7’ or 8” double diaphragm vacuum booster and your brake system compatible master cylinder of your choice.
With the threaded adjustment at the pedal pivot pin, you can adjust the pedal off the floor kick panel by 65mm (2 1/2″) or set the brake pedal pad relationship with the accelerator pedal.
Easy to install, just follow the fitting instructions
CPB is fully Australian ADR compliant. Outside of Australia CPB is currently only suitable for off-road use.
WHY CHOOSE A COOEE PEDAL...
NO WELDING – ALL BOLT IN
QUICK & EASY INSTALLATION
MADE & TESTED BY COOEE COMPONENTS
100% AUSTRALIAN DESIGNED
- Quick Easy installation some cars need only ONE hole drilled
- All models suit LHD and RHD application
- NO Welding Bolt In design
- Precision manufactured
- Bronze bushing on brake and clutch pedal
- More room in the engine bay around your engine, No Booster in the engine bay
- Brake booster mounted under the dash with master cylinder on the firewall for easy service and the Old School look
- Add bling with Polished Stainless Steel plain or drilled GT version brake pedal lever
- No more booster and master cylinder mounted under the floor in the heat from the exhaust and gearbox.
- More space under the car to run exhaust systems
- Suitable for Standard 7 or 8 inch after market booster
- Pedal box assembly easy to install and allows easy maintenance and servicing
- 7” or 8” Brake booster with firewall mounted master cylinder for ease of service and the Old School look with the Booster hidden behind the dash.
- Set up the pedal position and master cylinder location to suit your vehicle.
- 2 location options with in the pedal box for you to determine brake pedal mounting position to help clear steering column etc
- No more lying on your back checking brake fluid levels under the dash or under the car
Satisfaction Guaranteed or Your Money Back
Company
Introduction
Cooee Components is a company that designs, develops and manufactures products that help with the building and driving of Hot rods and Custom Classic Cars.
- Coo ee Products are for Hot Rod and Custom Car and Truck owners that like to drive their cars
- Coo ee Products are developed for use by any car builder from Professional to Hobbyist.
- Coo ee Components is located in Queensland Australia owned and operated by Car enthusiasts that have built Hot Rods , Modified Street Cars and purpose built Race Cars with over 30 years of experience
- Cooee Components Engineering and Manufacturing Team are dedicated to delivering Top Quality products
- Cooee Components in house Quality Control Inspection of all manufactured parts including Quality Control with the selection of the highest quality raw materials.
- Full warranty is Guaranteed on all Coo ee manufactured products.
Our Product Inventory is growing all the time we will expand with more products currently in development and are willing to take customer requests.
